Modular design for complete material handling of lithium film extrusion lines (installed 20 plus ).

Scope of supply incl.

-PE powder unloading station

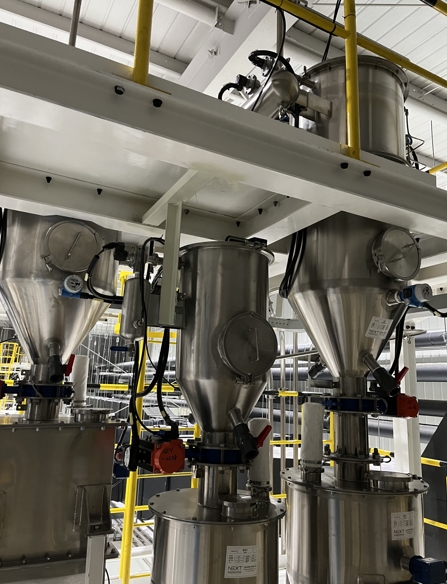

-Powder vacuum conveying and dosing units

-recipe in-line mixing and weighing system

-oil storage and metering lines

-complete line control

-modular design of steel structure

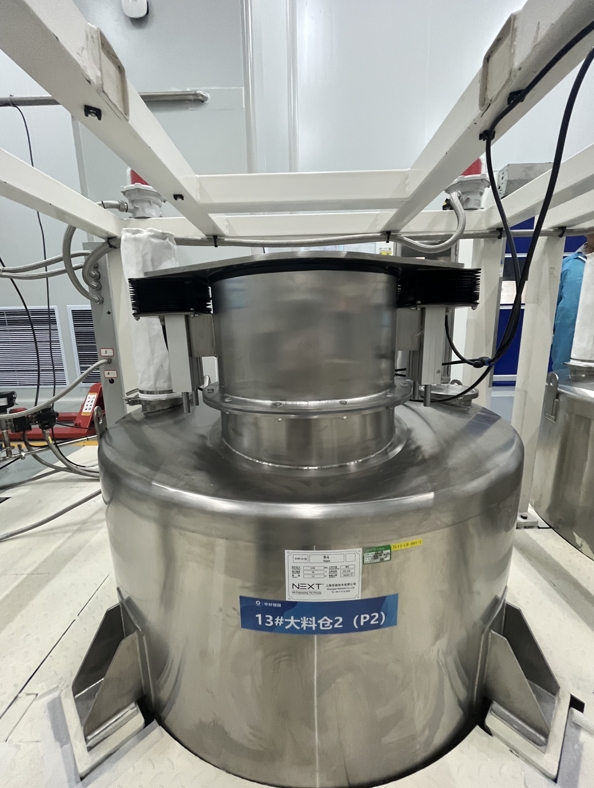

big bag unloading and vacuum conveying line, design and manufactured zinc and copper free.

batch weighing scale accuracy +/- 1g for small ingredient, main components accuracy 0.1% achieved.

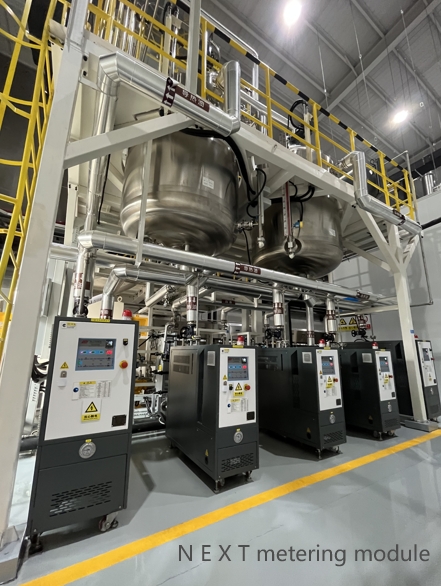

modular design and pre-assembly of oil metering lines, Temperature +/-1℃，metering+/- 0.2% into extrusion.
