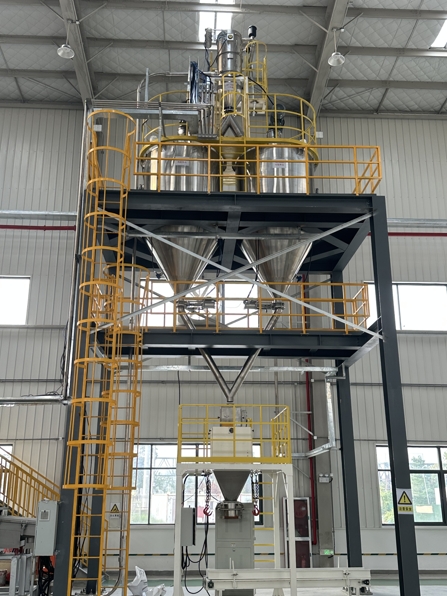

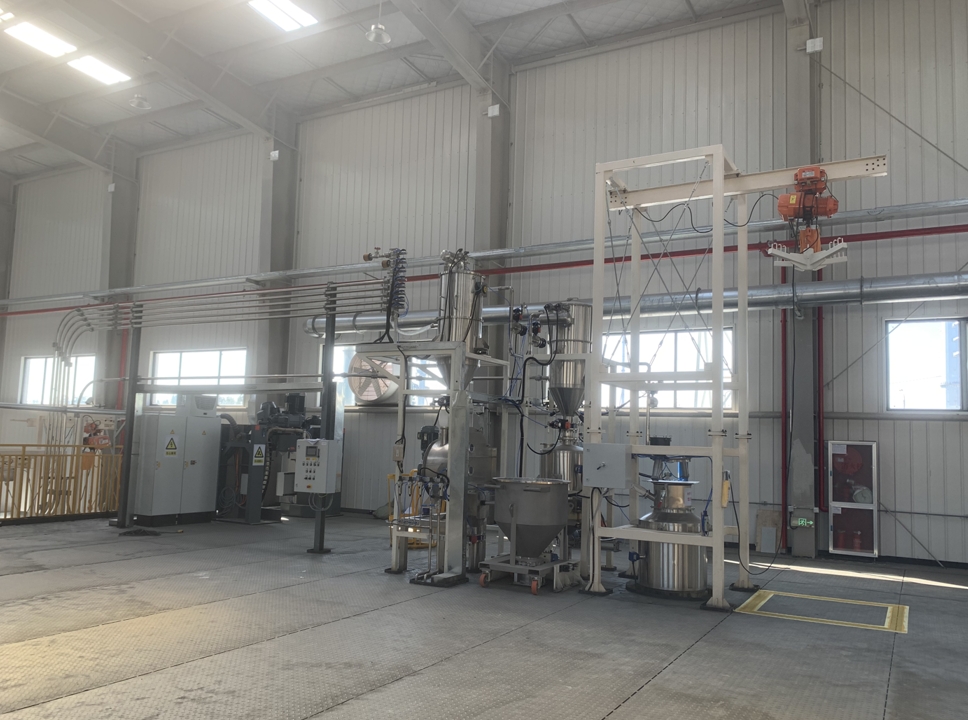

10000T/year PC compounding plant completly built up by Nextech in total time period of 8 months, scope of supply incl. 4000m2 factory design and build up ，extrusion line design and delivery, material handling system for 3 lines,finish product handling system. Highest flexible production philosophy were considered during design and setup, multi-components scale mixer NX-Mis300, automatic weighing of pre-mix receipe for Mixaco mixer, micro-dosing of small ingredients, innovative material handling  allowing flexible production or future expansion a much more easier job.

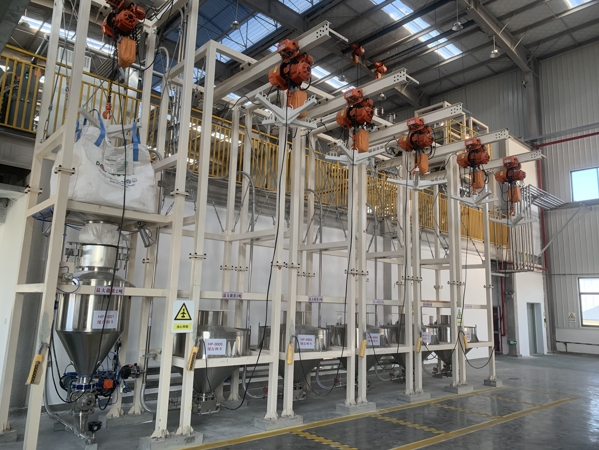

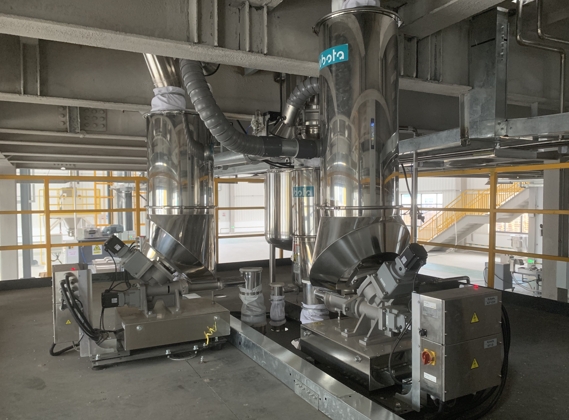

Big bag unloading station for 3 extrusion lines, pellets and powder total 5 components,Components from raw material dosing mixing directly into the Kubota loss-in-weight feeders.

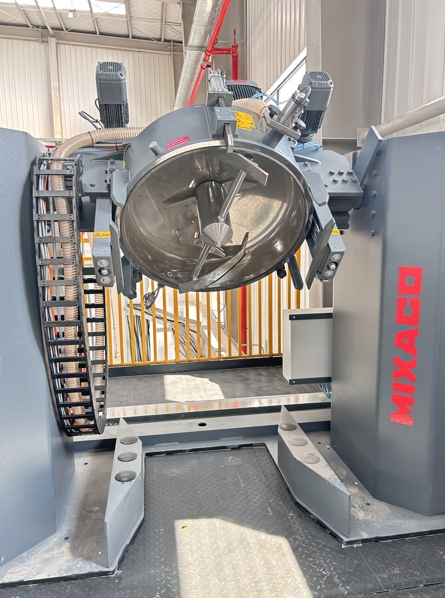

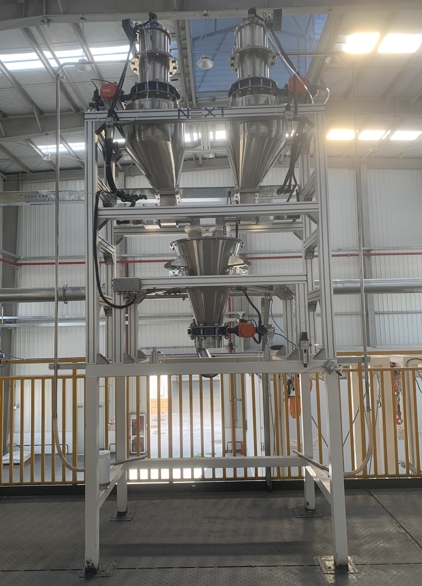

pre-mix  carried out by Mixaco mixer and NEXT micro-metering units gurantee the best performance.

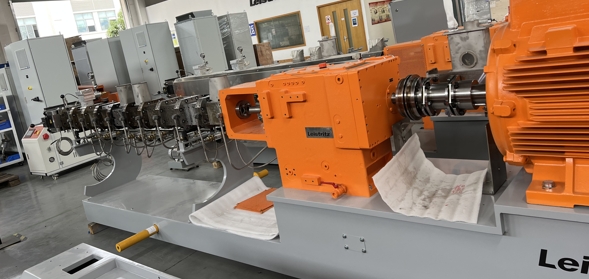

modular design 60 extruder designed throughput approx.800~1000kg/hr depending on process.

Finish product handling
